Selecting a PoE security camera system is easier when you begin with the site, the coverage goal, and the level of image detail you need. A good system should provide useful evidence, reliable recording, and a practical installation path without adding unnecessary complexity.
What Is a PoE Security Camera System?

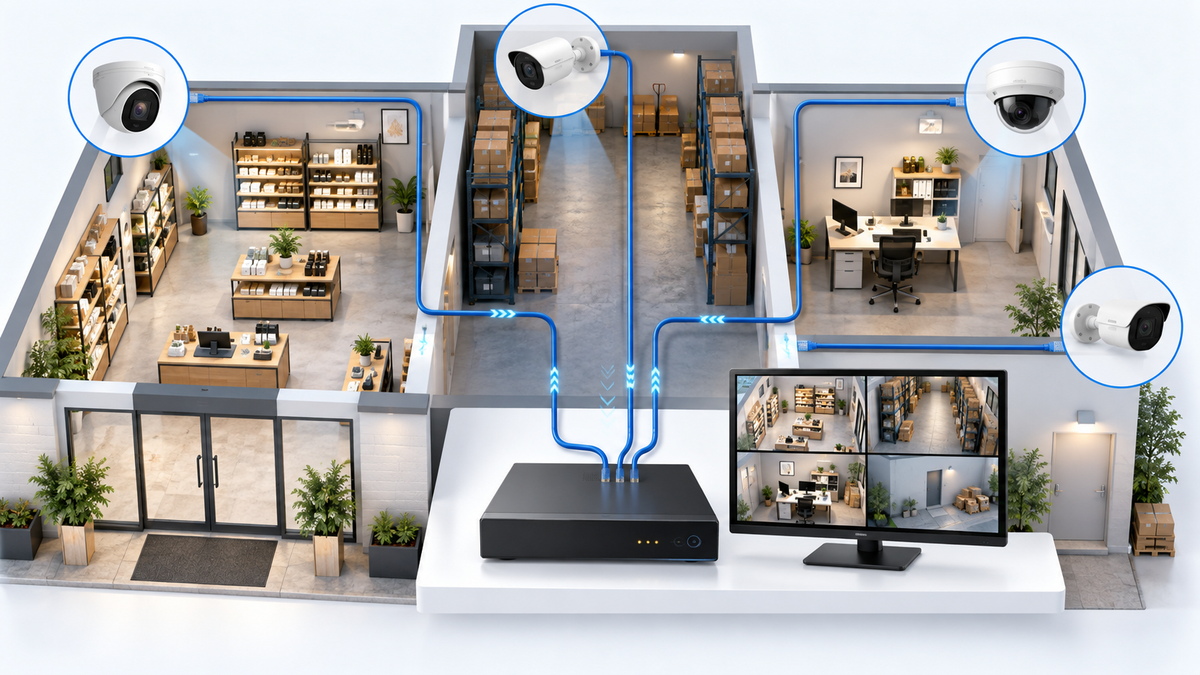

Power over Ethernet, or PoE, carries network data and electrical power through one Ethernet cable. In a typical system, each IP camera connects to a PoE network video recorder or a compatible PoE switch. This wired design is popular in shops, offices, warehouses, apartment buildings, schools, and other sites where stable operation matters.
PoE reduces the need for a separate power socket beside every camera. The recorder can also centralize live viewing, playback, storage, and remote access. The final result still depends on correct cable routing, network capacity, recorder compatibility, and installation quality.
1. Start With the Number of Areas You Need to Cover
List entrances, exits, sales floors, cash-handling areas, corridors, loading zones, parking areas, storage rooms, and perimeter points. Each location may require a different field of view. A four-channel system can suit a small office or shop, while eight- and sixteen-channel systems provide more room for larger sites or future expansion.
Choose a recorder with enough channels for the cameras you need now and any realistic additions. Leaving spare channels can be more economical than replacing the recorder later.
2. Match Resolution to the Monitoring Task
Resolution affects the amount of visible detail, but it should not be considered alone. Lens choice, camera placement, lighting, compression, recording bitrate, and viewing distance also influence the usable image.
- 4MP: a practical choice for general business monitoring and everyday site coverage.
- 5MP: provides additional detail for entrances, counters, aisles, and other areas where closer inspection may be useful.
- 8MP: can provide higher detail for larger scenes, provided that the recorder, storage plan, network, and lighting support it.
A higher number does not automatically solve poor camera positioning. Define the scene first, then select the resolution and lens.
3. Choose the Correct Lens and Viewing Angle
A wider lens covers more of a room but makes distant subjects appear smaller. A narrower or adjustable lens covers less area while providing a closer view of the target zone. Fixed-lens cameras are straightforward for predictable scenes. Varifocal or zoom-capable cameras are useful when the installer needs more control over framing.
For doors and gates, avoid placing the camera too high or aiming across strong backlight. For warehouses and parking areas, divide large spaces into several meaningful views instead of relying on one extremely wide image.
4. Plan for Day and Night Conditions
Inspect each location at the darkest time of day. Standard infrared night vision can be suitable when monochrome nighttime footage is acceptable. Full-color night vision requires enough light from the camera or the environment and can help preserve color information. The appropriate option depends on the scene, required identification detail, and whether visible illumination is acceptable.
Check for reflective walls, glass, vehicle headlights, and strong entrance lighting. These factors can reduce image quality even when the camera has a strong nighttime specification.
5. Estimate Storage Before Ordering
Storage requirements depend on the number of cameras, resolution, frame rate, compression, bitrate, recording schedule, scene activity, and desired retention period. Continuous recording generally requires more capacity than motion-based recording. Ask the supplier or installer to calculate storage using the intended settings instead of relying on a generic number of days.
Confirm whether the hard drive is included with the recorder, the supported capacity, and whether storage can be expanded.
6. Verify Camera and Recorder Compatibility
Confirm resolution support, channel capacity, PoE power budget, compression format, audio support, alarm features, remote-viewing platform, and compatible storage. Cameras with two-way audio, detection functions, warning lights, or special tracking features may require specific recorder or software support.
For mixed-brand projects, ask which functions are available through standard protocols and which functions require the manufacturer's own recorder or application.
7. Consider the Installation Environment
Indoor and outdoor installations have different requirements. Outdoor cameras need suitable environmental protection and secure cable entries. Industrial sites may require stronger housings, protected conduit, surge protection, and careful grounding. Cable length and quality also matter. Standard Ethernet design rules should be followed, and longer routes may require switches, fiber links, or a different network layout.
8. Review Remote Access and Account Security
Remote viewing is useful for owners and managers, but it should be configured carefully. Use unique passwords, restrict user permissions, keep device software current, and avoid sharing one administrator account with every user. Decide who can view live video, export footage, change settings, and manage devices.
Questions to Ask a PoE Camera Supplier
- Which camera and recorder models are included?
- Are the cameras and recorder fully compatible at the advertised resolution?
- Is the hard drive included, and what retention can be expected with the planned settings?
- Which lenses and night-vision modes are available?
- Does the system support audio, detection, warning lights, or remote access?
- What cables, connectors, power accessories, and mounting parts are included?
- Are OEM, labeling, packaging, or bulk-order options available?
Choose a System Around the Site
The best PoE security camera system is the one designed around the actual site. Start with coverage, image detail, nighttime conditions, storage, and future expansion. Then compare complete system specifications instead of choosing on resolution or channel count alone.
Explore the YGH-CCTV product catalog or contact YGH-CCTV to discuss PoE camera systems, recorders, and OEM/ODM requirements.
